Commercial and public buildings
Selected Kampmann projects in offices, healthcare, cultural spaces and public buildings.
3LHD Urania
Katherm HK trench fan coils and Venkon ceiling units were integrated into the 2018–2019 conversion of Zagreb’s former Urania cinema into office and public cultural space. Architecture: Studio 3LHD. Building services: Grga – Ivan Grgić, with consultant Termotehnika Paun – Vladimir Paun. TDC supplied Kampmann equipment with technical project support.
Photos: Jure Živković
Sljeme cable car
TDC supplied Katherm QE207 electric trench heaters, 1,700 mm long, 207 mm wide and 112 mm high, with natural anodised aluminium roll-up grilles and type 146928 room controllers. Partner: Pametna energija. Zagreb.
Building photo: User4926 / Wikimedia Commons, CC0. Image cropped in the card.

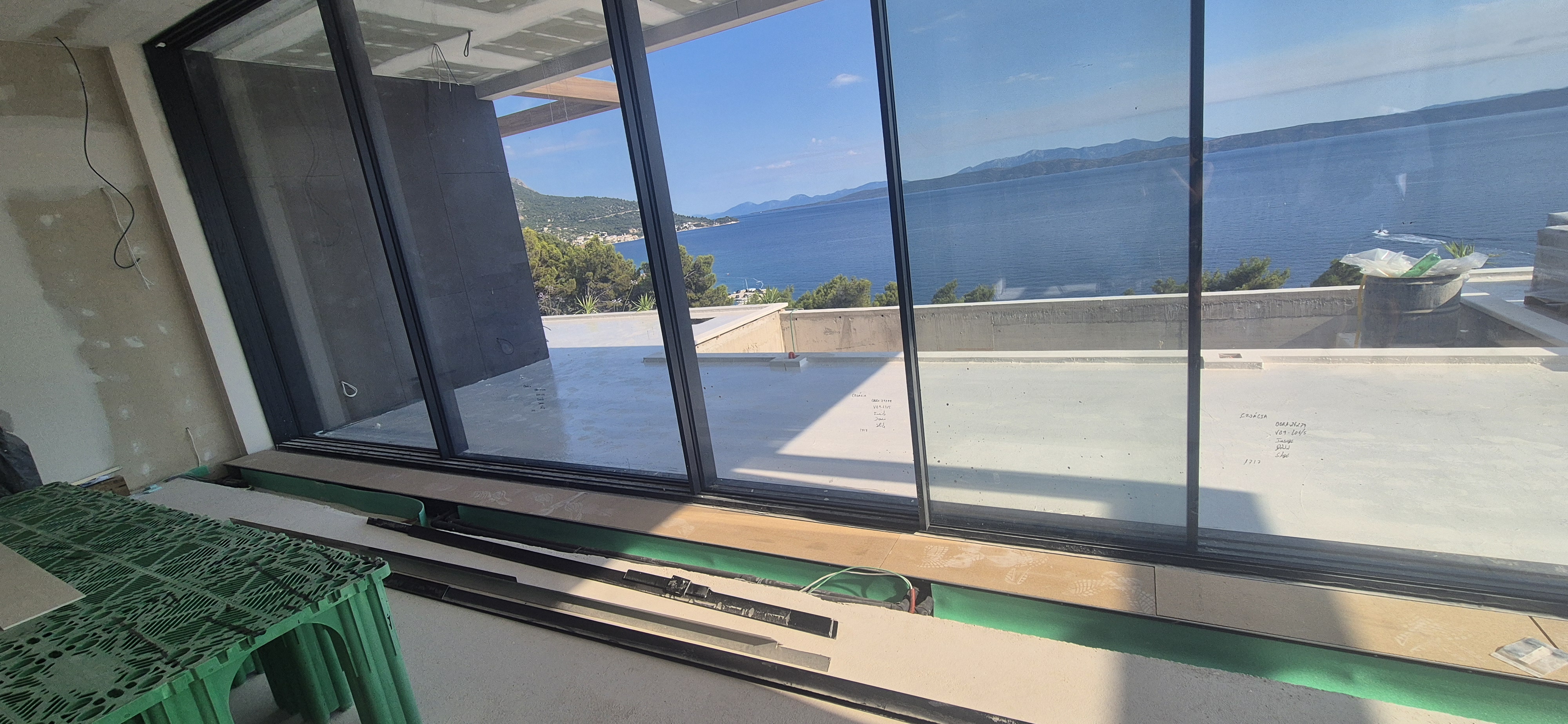

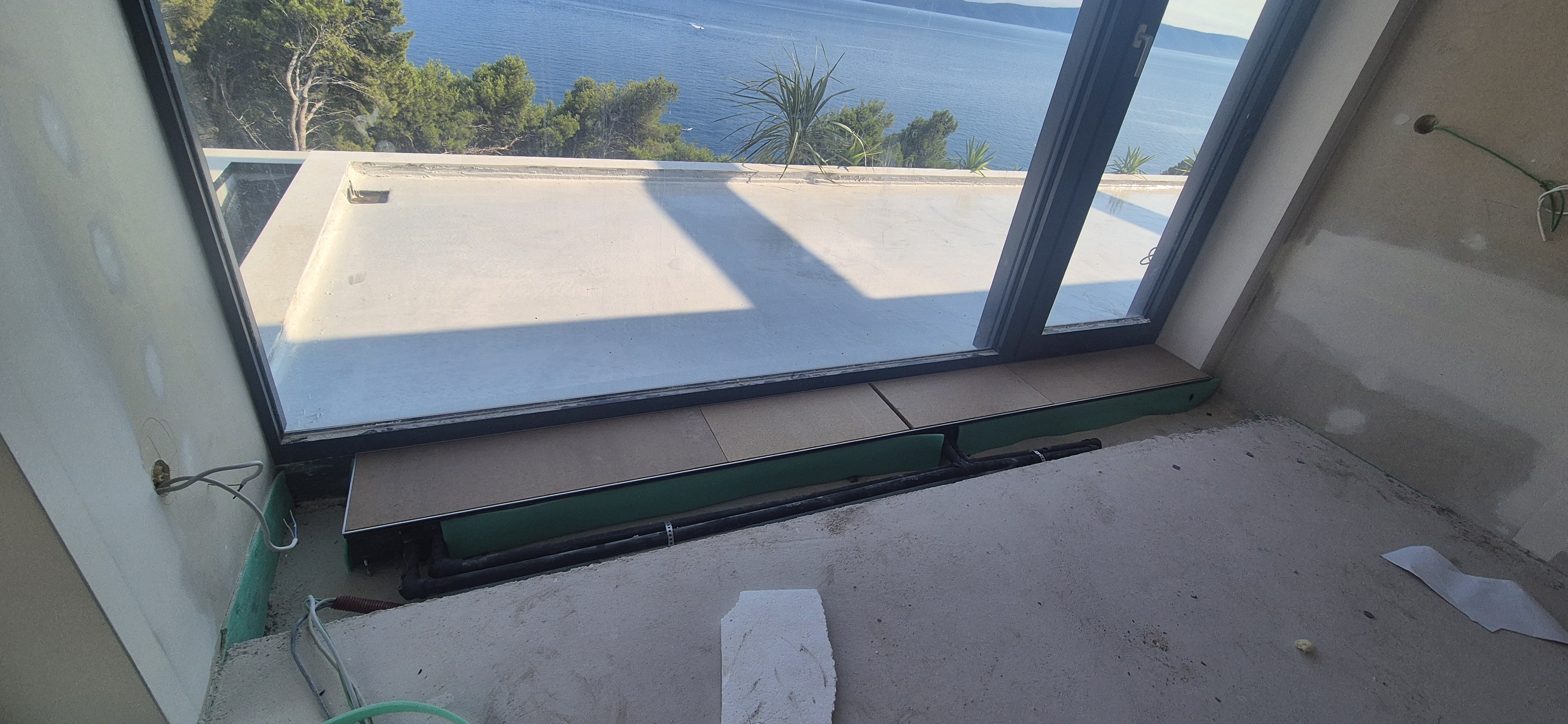

Ortovista Polyclinic, Podgora

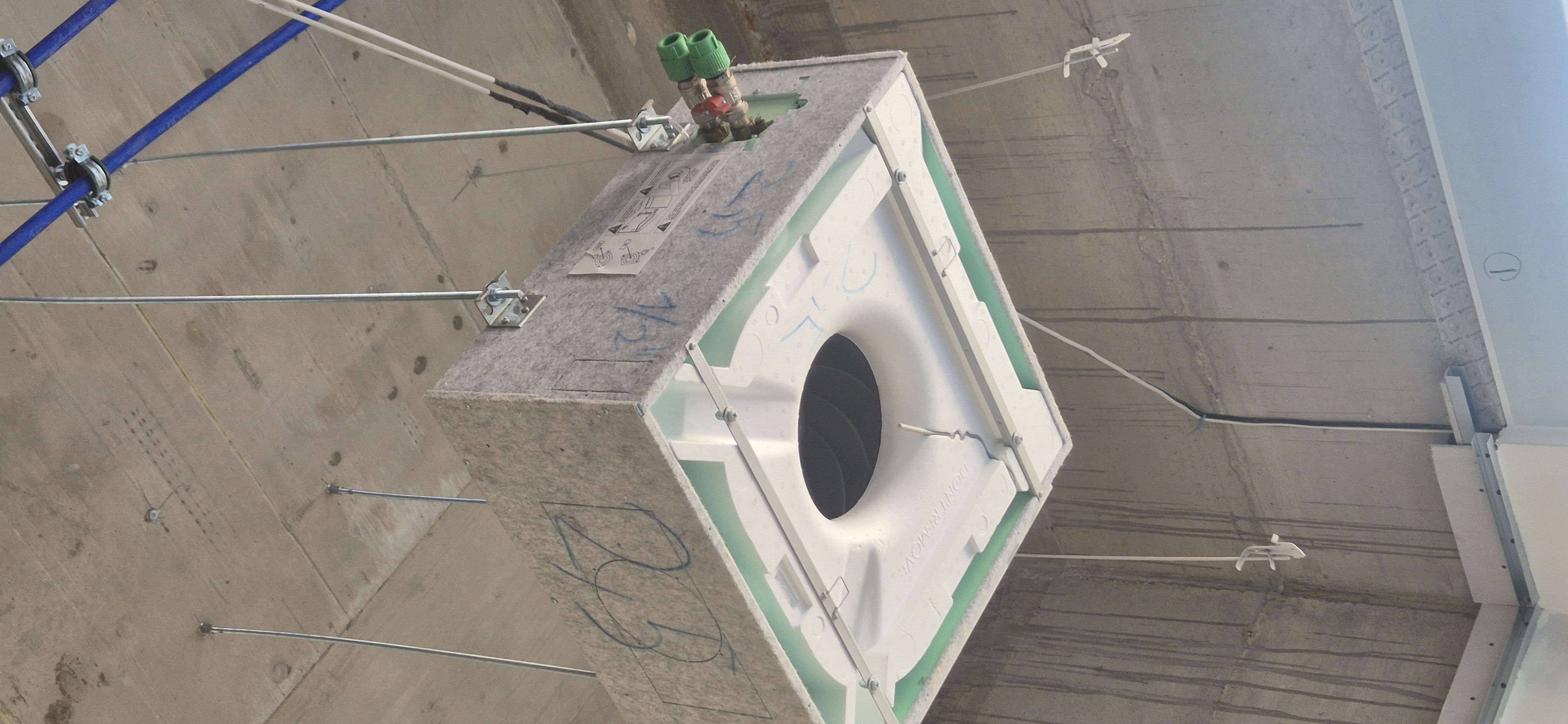

Equipment supplied in 2026 for a project under construction: KaCool D AF and hygienic KaCool D HY ceiling units for the clinic, including an ePM1 50% filter for the procedure room, with KaControl prepared for KNX. The separate residential area uses Katherm HK, KaDius and KaCool D AF. Construction photographs show installation before finishing works; the trench units shown are in the residential area.
Construction photos from the supplied project archive, before finishing works. Trench units shown are in the residential part.
Lipik Hospital
Katherm NK232 trench heaters, 4,400 mm long, 92 mm high and 232 mm wide, were supplied in 2022 with natural anodised aluminium roll-up grilles and return shut-off valves. Partner: MB Instalacije.
AI-generated illustration; not a photograph of the actual building or installation.
Importanne Centre
This Sarajevo project includes 182 two-pipe Katherm HK340 units with a total length of 343.75 m. The original equipment was supplied directly through Kampmann. TDC’s role is long-term technical support and spare parts supply, continuing today.
Building photo: material supplied to TDC.
Hrvatske ceste – Osijek office
In 2005, TDC supplied 89.439 m of project-specific perimeter casings for the office at Vukovarska 122. The RAL 1015 powder-coated steel casings included discharge grilles, corner and front panels, a data duct and skirting details, following site measurements and manufacturer drawings.
Illustrative equipment image from Kampmann / TDC material; not a photograph of the project or necessarily the same historical equipment version.
Erste Bank – Tratinska
Steel convectors in custom lengths were supplied in 2006 for the bank at Tratinska 1, Zagreb, with brackets, connection kits and thermostatic heads. Partner: Energon.
Illustrative equipment image from Kampmann / TDC material; not a photograph of the project or necessarily the same historical equipment version.
Knin railway station
Kampmann UniLine 260 horizontal air curtains, size 20, basic unit type 520330, were supplied with wall brackets, three-stage summer/winter switches, thermoelectric shut-off valves and discharge temperature limiting valves.
Building photo: Wijkstrar / Wikimedia Commons, CC BY-SA 4.0. Image cropped in the card.
NTH Mobile
TDC supplied 55 four-pipe Katherm HK trench fan coils for the office building in Varaždin during 2024–2025, with a combined length of 140.3 m. The 130 mm high, 320 mm wide units have natural anodised aluminium roll-up grilles and four-pipe valve sets with 24 V actuators. Partner: KOS d.o.o., Kotoriba.
Building photos from TDC’s supplied project archive, June 2025.
Hyundai Centre
Four-pipe Katherm HK trench fan coils provide heating and cooling. Belgrade, Serbia.
Photos: TDC website gallery
Plato restaurant
Four-pipe Katherm HK trench fan coils provide heating and cooling in the restaurant in Zagreb.
Photos: TDC website gallery
Hypo Centre – offices and wellness
Katherm QK trench heaters with EC fans serve office and wellness spaces within the same complex in Zagreb.
Photos: TDC website gallery
Retrofitting existing floor trenches – Osijek
Technical development and supply of Katherm QK nano units to replace existing Katherm NK equipment. The arrangement was adapted to the existing trenches and retained grilles, with coordinated dimensions, unit layout and controls.
Illustrative equipment image from Kampmann / TDC material; not a photograph of the project or necessarily the same historical equipment version.
